High sensitivity

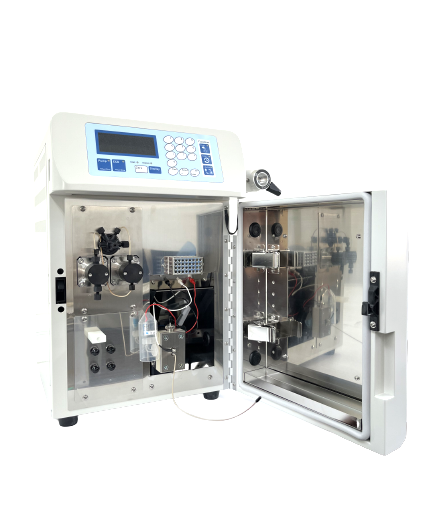

HTEC-600

​“ 超高感度・高安定
★ 感度はドーパミン・セロトニンで30fg 以下
★ 革新的なセルの設計・無脈動ポンプによるシステム設計
★ 冷却器とヒーターによる温度制御システム・ECD の最適化されたアプリケーション


これらによりエイコムのECD は超高感度・高安定を実現しています

一体型で省スペース

送液ポンプ、デガッサ、恒温槽、電気化学検出器を一体化。
これにより流速が500μL/min を超える(カラムサイズが大きなもの) ような
他検出器の分析アプリケーションの実施が可能になりました
※ 従来のモデルでは庫内に入れる事が出来なかったサイズの長いカラムも使用可能。
幅広い分析アプリケーションに対応しました


​“ 機能の追加

★ PURGE 機能
高速送液を行えます。稼働時間を設定できるので液が枯れる心配はありません。
エア抜き、液交換を自動で行えるので一般的なHPLC のトラブルで最も多いポンプによるエラーが大幅に改善されました。

★ TIMER 機能
ポンプ、ECD それぞれを時間制御でON/OFF する機能です。稼働時間を制限できるので移動相の消費を最小限に抑える事が可能です。
このTIMER 機能によってポンプやECD を効率的に稼働させスムーズなサンプル測定へ移行する事が出来ます。

★ L.SWITCH
HTEC-600 からELS-500 を制御する事が可能です。アミノ酸分析や比較的夾雑が出やすいサンプルの場合クロマトグラム後半に
出てくる夾雑を除去することは分析の効率化につながるので、ELS-500を手軽に使用できることは実験する上で大きなメリットとなります。

作用電極の洗浄や交換・メンテナンスが容易


コンパクトでシンプルな設計の為、作用電極の交換をするのに工具は不要です。
またメンテナンスが驚くほど容易です

​“ HTEC-600が得意とする物質たち

★ドーパミン ★DOPAC ★HVA ★3MT ★L-DOPA ★ノルエピネフリン  ★MHPG  ★ノルメタネフリン ★エピネフリン
★セロトニン ★5-HIAA ★メラトニン  ★フェノール類  ★ アセチルコリン ★コリン ★ヒドロキシラジカル  ★アスコルビン酸
★トコフェロール  ★エストラジオール  ★8OH-dG ★ニトロチロシン ★GSH ( グルタチオン) ★GSSG ( グルタチオン)
★アスパラギン酸 ★グルタミン酸 ★グルタミン ★グリシン  ★タウニン ★アラニン  ★GABA  など

測定可能な物質はこれだけではありません。お問い合わせ下さい。

 量生体試料分析システム

HPLC-ECD System

仕様


<測定原理>**************************************************************************************************************

方式            HPLC-ECD 法

<検出器>*****************************************************************************************************************

検出方式          アンペロメトリック

印加電圧        0 ~ ±2,000 mV、1 mV step

作用電極方式      薄層式

作用電極種類      グラファイト( 標準)、ピュアグラファイト、グラシーカーボン、白金、金、銀

作用電極ガスケット   TFE 製 厚さ25 μm または50 μm

参照電極        銀/ 塩化銀 (塩化リチウム封入液絡式)

対極 (補助電極)     SUS316

接液部材質       PEEK、SUS316

記録計出力信号     ±10 V アナログ (0.1 nA = 1 mV)

時定数         1.0 sec、1.5 sec、3.0 sec

信号入力        SIGNAL IN: 接点信号300 msec 以上で検知
            M.INJECTOR SIGNAL IN:オープン/ クローズ信号切換えから300 sec で検知

外部機器制御信号    0 sec:信号入力検知と同時に接点信号 (1 sec) 出力
            3 sec:信号入力検知から3 秒後に接点信号 (1 sec) 出力
            6 sec:信号入力検知から6 秒後に接点信号 (1 sec) 出力


<送液ポンプ>************************************************************************************************************

送液方式        直列ダブルプランジャー往復動方式

1 ストローク容量     80 μL

ピストン材質      サファイア

設定流量範囲       1 ~ 3000 μL/min

安定流量範囲      100 ~ 2000 μL/min

接液部材質        PEEK、サファイア、ルビー、PTFE、PCTFE

耐圧           20 MPa

脈流低減機構       自動脈流制御


<脱気装置>**************************************************************************************************************

方式           連続真空膜透過式

流路数          2 流路

内部容量         上段:約300 μL/ 流路

             下段:約7.5 mL/ 流路

<恒温槽>*****************************************************************************************************************

方式            ペルチェ素子による加熱/ 冷却空気循環式

設定温度範囲        15 ~ 50℃ (1℃step)

温調精度           ±0.1℃

<全 体>*******************************************************************************************************************

寸法           290 W x 380 D x 435 H mm ( 突起部を含まず)

重量           23.2 kg

電源           AC 100 ~ 240 V 50/60 Hz 300 VA
